Pallet collar / New / Article 1080-100

Full-pallet collars

Machined wooden sides. Galvanised hinges.
Build height for your goods in a full-pallet format.

Article
1080-100
Price
€ 13.53–16.23/unit excluding VAT and freight
Price condition
Order quantity

The collar's actual internal and external dimensions are confirmed before ordering.

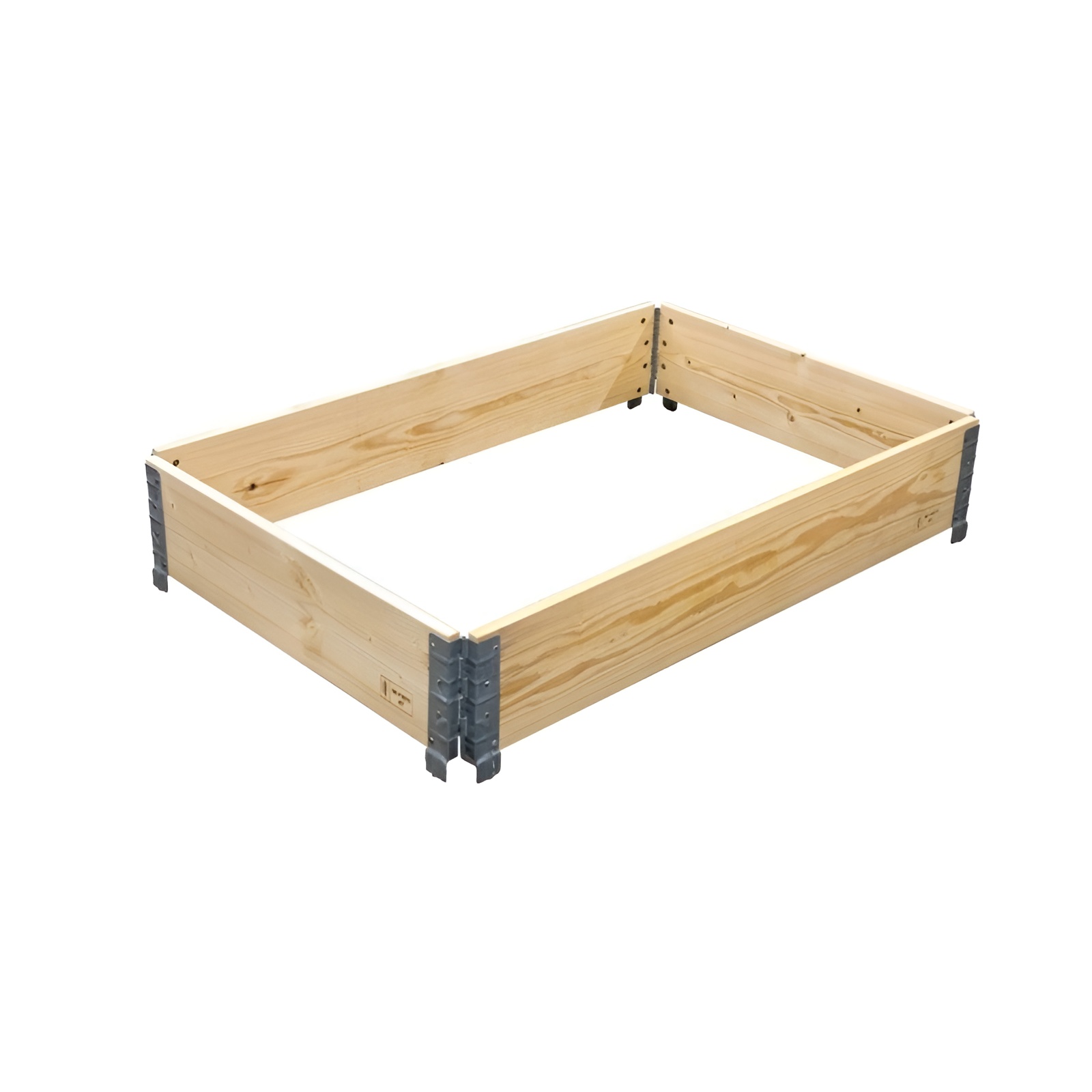

Pallet collar for full pallet 1200x800 mm with galvanised hinges for secure wooden packaging.
Pallet format
1 200 × 800 mm
Height per collar
200 mm
Sides
Milled wood
Hinges
Galvanised sheet metal

Dimensions, materials & conditions

Details that complete the packaging.

Pallet collar for full pallets and EUR pallets in the 1 200 × 800 mm format, height 200 mm, article 1080-100. Milled wooden sides and galvanised sheet-metal hinges. Request a quote based on quantity, goods and handling.

Fit, stacking and load are assessed together with the pallet, goods, lid and handling.

Full-pallet collar specifications

Format, material and selection for article 1080-100
ProductFull-pallet collars
Article number1080-100
CategoryPallet collar
Pallet format1 200 × 800 mm
Height200 mm
ConditionNew
Internal and external dimensionsThe collar's actual internal and external dimensions are confirmed before ordering.
SidesMilled wood
HingesGalvanised sheet metal
CompatibilityFull-size pallet and EUR pallet in the 1 200 × 800 mm format; actual fit is checked
Stacking and loadAssessed for the complete unit: pallet, collars, goods, lid and handling
Price€ 13.53–16.23/unit excluding VAT and freight
Price conditionOrder quantity

Four sides. Folding corners.

Drawing specification for the 1 200 × 800 mm pallet format. GLF supplies pallet collars; the actual specification is confirmed in the order.

The collar’s four sidesPallet collar with two long sides, two short sides and fittings at four corners. The drawing’s plan dimensions are 1 200 × 800 mm; the wooden parts are 195 mm high. Open at top and bottom. The perspective and fittings are schematic.L 1 200 mmW 800 mmBoard height 195 mm
Two long sides of 1 143 mm and two short sides of 743 mm. Hinges at all four corners; the pallet collar has no base. Explanatory diagram; hinges and perspective are schematic.
Components according to the drawing’s bill of materials
Long sides · 2 pcs1 143 × 195 × 19 mm
Short sides · 2 pcs743 × 195 × 19 mm
Corner fittings4 right-hand parts and 4 left-hand parts for 4 corners
Rivets · 32 pcsHN5-25 × 4.9
MaterialWood and steel
Tare weight in the drawing8,1 kg

Board dimensions are given as length × board height × thickness. Plan dimensions and board lengths have a +2/−1 mm tolerance; board height has a ±1 mm tolerance.

Nominal product height is 200 mm. The reference drawing specifies wooden sides 195 ±1 mm high, a different measurement from overall height over the fittings. Use the selected order drawing for height-critical clearances.

Use the board thickness and corner fit agreed in the order drawing.

View the original drawing · rev. 1AOriginal drawing, pallet collars 1200x800x195, revision 1A. Four wooden sides and corner fittings.Open the original drawing (PDF)

Delivery and options

Pallet collars from GLF

GLF supplies pallet collars for recurring packaging flows. Select the format, quantity and required condition for the order.

Pallet collars →

200 mm per collar

Build height.
One collar at a time.

Stack one or more collars on the pallet to build sides around the goods. Each collar is 200 mm high.

Calculation example: combined collar height

1 collar

200mm

2 collars

400mm

3 collars

600mm

Calculated at 200 mm per collar, excluding the pallet and lid.
The number of levels must suit the load and handling.

Full-size pallet format · article 1080-100

Pallet collar for the pallet format 1 200 × 800 mm,
height 200 mm

The pallet collar is intended for the 1 200 × 800 mm pallet format and has a height of 200 mm. It has milled wooden sides and galvanised sheet-metal hinges. It is used with a compatible full pallet or EUR pallet to create enclosing packaging.

GLF helps combine the collar with the pallet and lid for the goods’ height, support and handling. The quote defines the selected fit, quantity and specification.

Pallet. Collar. Lid.

Build the packaging
to suit the goods

The pallet is the base.
The collars form the sides.
The lid is selected according to environment and handling.

Full-pallet wooden lid fitted to a pallet collar and EUR pallet for secure packaging.
Example of combining a pallet, collar and wooden lid.
Full-pallet wooden lid, article 1210

The right assembled height

Collar on collar.

Use one or more collars according to the goods’ height. The number of levels must suit the load and handling.

The right lid

Choose the lid for the environment.

Choose a lid made from wood, plywood or chipboard, or a made-to-measure lid based on the environment, fixing and handling.

The right pallet

Pallet to suit the load.

Check the pallet’s condition, external dimensions and load case. The collar does not replace verification of the pallet’s capacity.

From use to storage

Build up.
Fold down.

Folding collars can reduce space during returns and storage. Check the components before the next use.

Inspection and reuse

  1. Check the pallet and collar.

    Inspect wooden components, hinges, fit and visible damage before use.

  2. Assess the complete load.

    Consider load distribution, stacking, support and handling methods.

  3. Fold empty collars flat.

    Folding collars can reduce space during returns and storage.

  4. Store the components in the correct environment.

    Protect the components from conditions the specification is not designed for.

Before export

Pallet collars and ISPM 15 for export

Solid-wood components in export packaging may fall under ISPM 15 depending on the destination and flow. Treatment and marking requirements are assessed for the whole unit. GLF confirms the actual specification, treatment and marking for the delivery.

Before shipment, check the pallet collar’s treatment and marking separately from the pallet’s. Read our guide to requirements for pallet collars used in export.

Frequently asked questions about full-pallet collars

What are the pallet collar's dimensions?

The pallet format is 1 200 × 800 mm and the height is 200 mm. The collar’s actual internal and external dimensions are confirmed before ordering.

Does the collar fit a EUR pallet?

Yes, the collar is designed for the 1 200 × 800 mm pallet format. GLF matches the selected collar’s dimensions and fit to the actual pallet and lid.

Which materials are used?

The collar has milled wooden sides and galvanised sheet-metal hinges.

Can several collars be stacked?

Collar systems are used to build height, but the number of levels and the load must be assessed for the complete packaging and the specific handling.

What information is needed for a quote?

Send the pallet format, quantity, goods, load distribution, required assembly height, handling, lid requirements, destination and any marking requirements.

Your goods. Your requirements.

Request a quote for pallet collars
1 200 × 800 mm

Specify the quantity, goods, handling and required assembled height. GLF can help you combine the pallet collar, pallet and lid.

Full-pallet collarsArt. 1080-100
Request a quote →
