Pallets

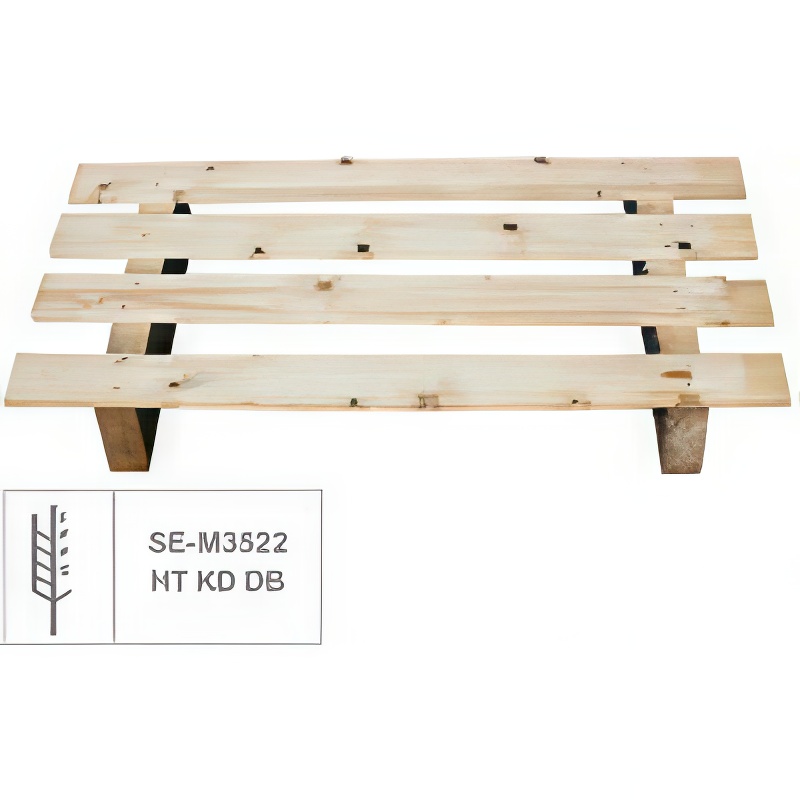

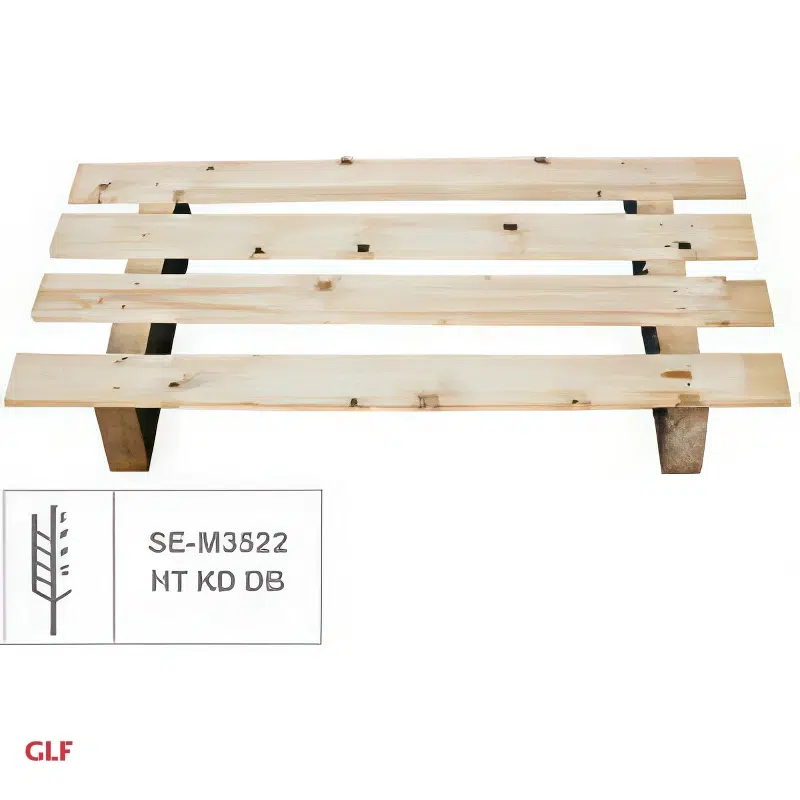

One-third pallet – small wooden pallet 800 × 400 × 115 mm

GLF’s wooden one-third pallet, article 1149, provides an 800 × 400 × 115 mm format for smaller goods flows, warehousing and retail display. It carries up to 400 kg with a uniformly distributed load and takes up less space than an 800 × 600 mm half pallet.

Article
1149
Price
€ 4.51–5.41/unit excluding VAT and freight
Price condition
Order quantity
Dimensions
800 × 400 × 115 mm
Maximum load
Up to 400 kg with a uniformly distributed load
Dimensions
800 × 400 × 115 mm
Maximum load
Up to 400 kg with a uniformly distributed load

One-third pallet for smaller goods flows

Small wooden pallet measuring 800 × 400 × 115 mm

One-third pallet, article 1149, is a compact wooden pallet for warehousing, transport and retail display where a half pallet or EUR pallet takes more space than the goods require. The pallet measures 800 × 400 × 115 mm.

Product specification

Dimensions, material and construction for article 1149
ProductOne-third pallet – newly manufactured
Article number1149
CategoryPallets
Dimensions800 × 400 × 115 mm
MaterialPEFC-certified wood
Export specificationISPM 15 treatment and marking requirements are confirmed in the quote
Price€ 4.51–5.41/unit excluding VAT and freight
Price conditionOrder quantity

PEFC certificates

GLF Genarp AB – PEFC certificate (PDF)
GLF Polska Mielec Sp. z o.o. – PEFC certificate (PDF)

The certificates cover each company’s chain of custody within the stated product scope. Confirm the supplying company and PEFC claim in the quotation.

Product information

Specification for article 1149

Article 1149 has a maximum load of 400 kg with a uniformly distributed load. Wood origin and export marking are specified for the actual delivery.

Construction and design

Construction and dimensions according to GLF drawing 1149. The feet stand on edge and are 100 mm high. Separate cross boards and blocks are not included.

Pallet construction · view from the 400 mm sideSchematic exploded view from the 400 mm side: 4 deck boards and one of two on-edge feet. The construction has no cross boards or blocks.

Schematic exploded view from the 400 mm side: 4 deck boards and one of two on-edge feet. The construction has no cross boards or blocks.

Select a component in the diagram and dimension table.

Deck boards
The ends of all 4 deck boards are visible from the 400 mm side.
Feet / beams
One of the two feet standing on edge is visible along the full 400 mm side. The other is behind it. The foot is 100 mm high; the smaller dimension is its thickness in plan view.

Total construction height

15 + 100 = 115 mm

Component dimensions · length × width × thickness or assembled height
Deck boards4 pcs · 800 × 70 × 15 mm
Feet / beams2 pcs · 400 × 100 × 41 mmStanding on edge, 100 mm high. The final dimension indicates thickness in plan view.

Load capacity and load conditions

Uniformly distributed load

Up to 400 kg

With a uniformly distributed load.

For concentrated loads or support in pallet racking, GLF selects the construction for that load case. The 400 kg value above applies to a uniformly distributed load.

Robot cell with a wooden pallet at GLF’s production facility in Genarp.

Manufacturing and customisation

Manufacturing at GLF

Robotic nailing on the production line in Genarp for newly manufactured versions.

Genarp has pallet drying facilities for newly manufactured wooden pallets. Moisture level and any heat treatment are selected according to the product and transport requirements.

Production in Genarp →

Compact load carrier

When is a small wooden pallet suitable?

The format suits smaller quantities and displays where a full-size pallet leaves unnecessary empty space. The right choice depends on the goods’ external dimensions, weight, centre of gravity, stacking and pallet handling.

  • Smaller goods flows in warehousing and internal logistics
  • Retail displays with limited floor space
  • Transport arrangements where 800 × 400 × 115 mm suits the load

Pallet dimensions in millimetres

Smaller than a half pallet

A one-third pallet is 200 mm narrower than an 800 × 600 mm half pallet. Choose according to the goods, handling equipment and transport flow rather than the name alone.

Quote specification

How to specify the right one-third pallet

The maximum load is 400 kg with a uniformly distributed load. Describe the goods’ dimensions, support points and destination to select the specification and any export marking.

  1. 01

    Goods and weight

    Specify the total weight, dimensions, centre of gravity and how the load is distributed over the pallet.

  2. 02

    Handling

    Describe lifting equipment, stacking, warehouse flow and transport arrangements.

  3. 03

    Delivery requirements

    Specify quantity, delivery location and whether the pallet will be used for international transport.

Frequently asked questions

Frequently asked questions about small wooden pallets

What are the dimensions of the one-third pallet?

This product measures 800 × 400 × 115 mm, making it narrower than an 800 × 600 mm half pallet.

How much load can the small wooden pallet carry?

Article 1149 has a maximum load of up to 400 kg with a uniformly distributed load.

Can the one-third pallet be used for export?

Describe the destination country and transport flow in the quote request. GLF can then confirm the ISPM 15 treatment and marking requirements applying to the delivery.

What is the difference between a one-third pallet and a half pallet?

This one-third pallet measures 800 × 400 × 115 mm, while GLF's dimension-specific half pallet measures 800 × 600 mm. The half pallet offers a larger load surface; the one-third pallet takes up less space.

Compare pallet formats

More wooden pallets for warehousing and transport

Next step

Need a small wooden pallet measuring 800 × 400 × 115 mm?

Send goods data, quantity, handling methods and delivery requirements so GLF can confirm a suitable specification and provide a quote.

Request a tailored quote

One-third pallet – small wooden pallet 800 × 400 × 115 mmArt. 1149
Request a quote →
