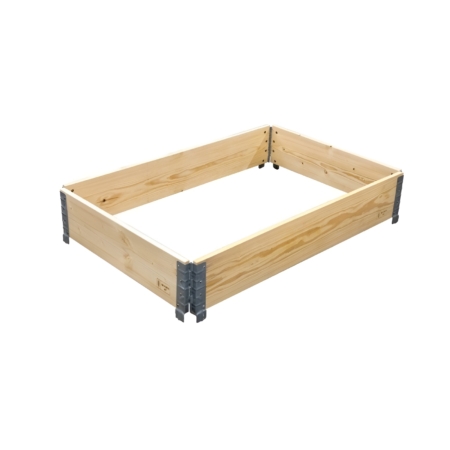

Pallet collar

Half-pallet collar

GLF supplies new half-pallet collars for the 800 × 600 mm pallet format, article 1082-100. Four wooden sides and folding corners create compact enclosing packaging for components, picking, transport and retail display.

Article
1082-100
Price
€ 11.72–13.53/unit excluding VAT and freight
Price condition
Order quantity
Pallet format
800 × 600 mm
Pallet format
800 × 600 mm

Half-pallet format · Article 1082-100

Half-pallet collar for the 800 × 600 mm format

The half-pallet collar is intended for pallets with a basic 800 × 600 mm format. Its compact size suits goods, warehouse spaces or retail areas that do not require a full-size pallet collar.

GLF helps combine the collar, half pallet and lid around the goods. The required assembled height, pallet dimensions, stacking and handling guide the selected specification.

Specifications and quote information

Format, material and selection for article 1082-100
ProductHalf-pallet collar
Article number1082-100
CategoryPallet collar
Pallet format800 × 600 mm
HeightThe height is confirmed for the actual specification in the quote.
ConditionNew
Internal and external dimensionsThe collar's actual internal and external dimensions are confirmed before ordering.
FitChecked against the pallet’s actual external dimensions and condition
StackingAssessed for the complete unit: pallet, collars, goods, lid and handling
AvailabilityQuantity and delivery arrangements are confirmed in the quote
Price€ 11.72–13.53/unit excluding VAT and freight
Price conditionOrder quantity

Four sides. Folding corners.

Drawing specification for an 800 × 600 mm pallet format. GLF supplies pallet collars; the actual specification is confirmed in the order.

The collar’s four sidesPallet collar with two long sides, two short sides and fittings at four corners. The drawing’s plan dimensions are 800 × 600 mm; the wooden parts are 195 mm high. Open at top and bottom. The perspective and fittings are schematic.L 800 mmW 600 mmBoard height 195 mm
Two long sides of 743 mm and two short sides of 543 mm. Fittings at four corners; the pallet collar has no base. Explanatory sketch; fittings and perspective are shown schematically.
Components according to the drawing’s bill of materials
Long sides · 2 pcs743 × 195 × 19 mm
Short sides · 2 pcs543 × 195 × 19 mm
Corner fittings4 right-hand parts and 4 left-hand parts for 4 corners
Rivets · 32 pcsHN5-25 × 4.9
MaterialWood and steel
Tare weight in the drawing4,6 kg

Board dimensions are given as length × board height × thickness. Plan dimensions and board lengths have a +2/−1 mm tolerance; board height has a ±1 mm tolerance.

The reference drawing specifies wooden parts 195 ±1 mm high. The quote defines the ordered collar height; use the order drawing for overall height over the fittings.

Use the board thickness and corner fit agreed in the order drawing.

View the original drawing · rev. 1AOriginal drawing, pallet collars 800x600x195, revision 1A. Four wooden sides and corner fittings.Open the original drawing (PDF)

Delivery and options

Pallet collars from GLF

GLF supplies pallet collars for recurring packaging flows. Select the format, quantity and required condition for the order.

Pallet collars →

When is a half-pallet collar suitable?

Retail and display

The 800 × 600 mm format may suit situations requiring a balance between floor space and ease of movement.

Warehousing and internal logistics

Create a contained unit for components, picking or return flows in a compact format.

Transport

Combine the collar with a suitable half pallet and a lid adapted to the packaging's dimensions and handling.

Check fit and reuse

  1. Measure the pallet. Confirm length, width and tolerances before ordering.
  2. Describe the load. Specify the goods’ dimensions and weight, load distribution, stacking and handling methods.
  3. Check before use. Inspect wooden components, hinges and visible damage.
  4. Store correctly. Fold empty collars where their design permits and protect them from unsuitable moisture and weather exposure.

For a reused alternative, you can also compare with a used half-pallet collar.

Confirm the lid’s fit against the collar’s actual dimensions, construction and fixing arrangement before ordering.

View the 800 × 600 mm half pallet

Export and ISPM 15

Treatment and marking requirements are assessed for the complete packaging and actual destination. Solid-wood components may fall under ISPM 15, while plywood and chipboard are normally considered processed wood. Always confirm the pallet, collar, lid and destination requirements together.

Frequently asked questions about half-pallet collars

Which pallet format fits the half-pallet collar?

The collar is intended for the 800 × 600 mm pallet format. GLF matches its actual dimensions and corner fit to the selected pallet and lid.

How high is the pallet collar?

The height is confirmed for the actual specification in the quote.

Can several half-pallet collars be stacked?

Collar systems build height, but the number of levels and loading must be assessed for the complete unit and its actual handling.

Which lids fit?

GLF offers wooden, plywood and chipboard half-pallet lids, plus made-to-measure lids. We select dimensions and fixing for the collar, storage environment and handling.

What information is needed for a quote?

Send the pallet dimensions, required assembly height, quantity, goods, load distribution, handling, lid requirements, destination and any marking requirements.

Request a quote for half-pallet collars

Send the pallet dimensions, quantity, required height and information about the goods and handling. GLF confirms fit, specification and delivery arrangements.

Request a quote

Half-pallet collarArt. 1082-100
Request a quote →
