Pallets

Quarter Pallet

GLF’s quarter pallet, article 5500, gives retail, warehouse and transport flows a compact 600 × 400 mm load surface. Maximum load is up to 300 kg when uniformly distributed. The pallet uses PEFC-certified wood and is treated and IPPC-marked according to ISPM 15.

Article
5500
Price
€ 3.88–5.41/unit excluding VAT and freight
Price condition
Order quantity
Dimensions
600 × 400 mm
Maximum load
Up to 300 kg
Dimensions
600 × 400 mm
Maximum load
Up to 300 kg

Compact pallet for smaller load surfaces

Quarter pallet in the 600 × 400 mm format

Article 5500 is a compact wooden pallet for retail, warehousing and transport, with a maximum load of 300 kg.

Product specification

Dimensions, material and construction for article 5500
ProductQuarter Pallet
Article number5500
CategoryPallets
Dimensions600 × 400 mm
Material and markingPEFC-certified wood with ISPM 15 treatment and IPPC marking.
Price€ 3.88–5.41/unit excluding VAT and freight
Price conditionOrder quantity

Construction and design

Option 1

Two construction options according to GLF drawing 5500. The feet stand on edge and are 100 mm high. Cross boards and blocks are not included.

Pallet construction · option 1 · view from the 400 mm sideSchematic exploded view from the 400 mm side: 4 deck boards and one of two on-edge feet. The construction has no cross boards or blocks.

Schematic exploded view from the 400 mm side: 4 deck boards and one of two on-edge feet. The construction has no cross boards or blocks.

Select a component in the diagram and dimension table.

Deck boards
The ends of all 4 deck boards are visible from the 400 mm side.
Feet / beams
One of the two feet standing on edge is visible along the full 400 mm side. The other is behind it. The foot is 100 mm high; the smaller dimension is its thickness in plan view.

Total construction height

15 + 100 = 115 mm

Component dimensions · length × width × thickness or assembled height
Deck boards4 pcs · 600 × 70 × 15 mmAlternatively 600×75×16–19 mm according to the drawing
Feet / beams2 pcs · 400 × 100 × 35 mmOn edge, 100 mm high. The final dimension indicates thickness in plan. Alternative thickness 38 or 41 mm.

Option 2

Two construction options according to GLF drawing 5500. The feet stand on edge and are 100 mm high. Cross boards and blocks are not included.

Pallet construction · option 2 · view from the 400 mm sideSchematic exploded view from the 400 mm side: 3 deck boards and one of two on-edge feet. The construction has no cross boards or blocks.

Schematic exploded view from the 400 mm side: 3 deck boards and one of two on-edge feet. The construction has no cross boards or blocks.

Select a component in the diagram and dimension table.

Deck boards
The ends of all 3 deck boards are visible from the 400 mm side.
Feet / beams
One of the two feet standing on edge is visible along the full 400 mm side. The other is behind it. The foot is 100 mm high; the smaller dimension is its thickness in plan view.

Total construction height

16 + 100 = 116 mm

Component dimensions · length × width × thickness or assembled height
Deck boards3 pcs · 600 × 100 × 16 mmAlternatively 600×90×16–19 mm according to the drawing
Feet / beams2 pcs · 400 × 100 × 35 mmOn edge, 100 mm high. The final dimension indicates thickness in plan. Alternative thickness 38 or 41 mm.

Load capacity and load conditions

Uniformly distributed load

Up to 300 kg

With a uniformly distributed load. Article-level value, rather than a separate capacity for each drawing alternative.

GLF selects the construction for concentrated loads or support in pallet racking as separate load cases. The 300 kg value above applies to a uniformly distributed load.

Robot cell with a wooden pallet at GLF’s production facility in Genarp.

Manufacturing and customisation

Manufacturing at GLF

Robotic nailing on the production line in Genarp for newly manufactured versions.

Genarp has pallet drying facilities for newly manufactured wooden pallets. Moisture level and any heat treatment are selected according to the product and transport requirements.

Production in Genarp →

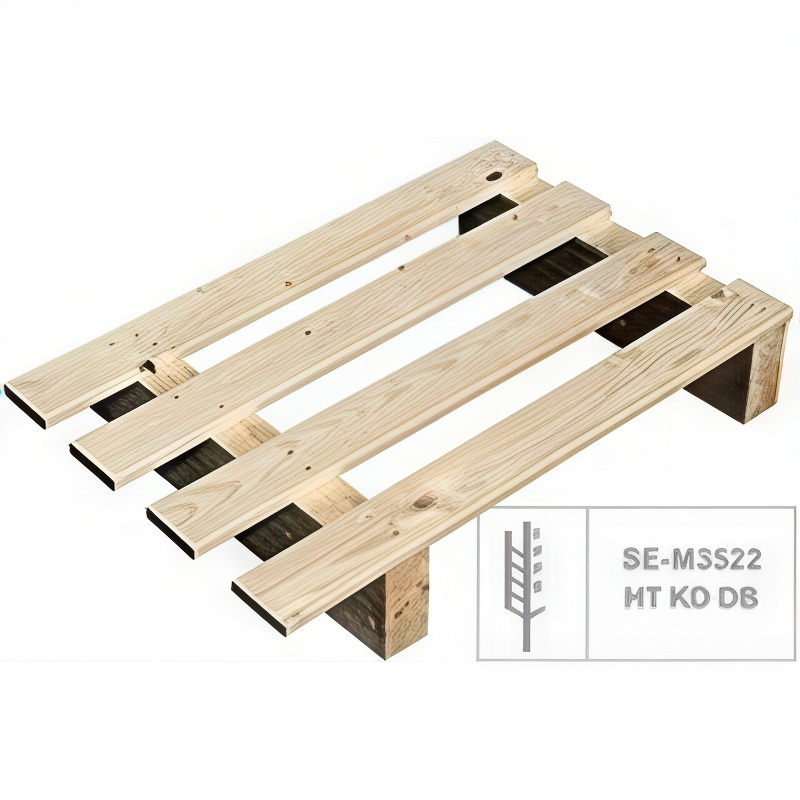

Quarter pallet article 5500 in the 600 × 400 mm format
Quarter pallet article 5500 for compact goods handling and retail use.

Small footprint, clear function

For retail, warehousing and transport

The 600 × 400 mm format is practical where a full pallet or half pallet takes too much space. It suits smaller goods flows and displays where the footprint must be kept down.

  • 600 × 400 mm quarter-pallet format
  • Maximum load of 300 kg
  • PEFC-certified wood; IPPC-marked and treated according to ISPM 15

Material and treatment

PEFC-certified wood; the pallet is IPPC-marked

The pallet combines PEFC-certified wood with ISPM 15 treatment and IPPC marking for relevant international flows.

PEFC certificates

GLF Genarp AB – PEFC certificate (PDF)
GLF Polska Mielec Sp. z o.o. – PEFC certificate (PDF)

The certificates cover each company’s chain of custody within the stated product scope. Confirm the supplying company and PEFC claim in the quotation.

  • PEFCCertified wood raw material
  • IPPCMarking of treated wooden packaging
  • ISPM 15For relevant international flows

Plan the format

Match the quarter pallet to the goods

The goods’ weight, supports and handling environment determine whether a quarter pallet is the right choice.

  1. 01

    Describe

    Specify the goods, weight, load distribution and required quantity.

  2. 02

    Check

    The pallet measures 600 × 400 mm and has a maximum load of 300 kg with a uniformly distributed load.

  3. 03

    Plan

    Agree the order and delivery with GLF.

Discuss your requirements

Is the Quarter Pallet right for your flow?

Describe the goods, load case and volume for a tailored quote.

Request a quote

Quarter PalletArt. 5500
