Pallets · Standard pallets

Full pallet 1,200 × 800 mm – 6D M22

GLF supplies full pallet 6D M22, article 1098, for transport and warehousing in the 1 200 × 800 mm format. Six deck boards and three 22 mm runners form the wooden construction, with a maximum load of 500 kg when uniformly distributed.

Article
1098
Price
€ 10.37–13.53/unit excluding VAT and freight
Price condition
Order quantity
Dimensions
1 200 × 800 mm
Maximum load
500 kg with a uniformly distributed load.
Treatment
Treatment and ISPM 15 marking are confirmed for the order when required by the destination.
Dimensions
1 200 × 800 mm
Maximum load
500 kg with a uniformly distributed load.
Treatment
Treatment and ISPM 15 marking are confirmed for the order when required by the destination.

Full pallet • article 1098

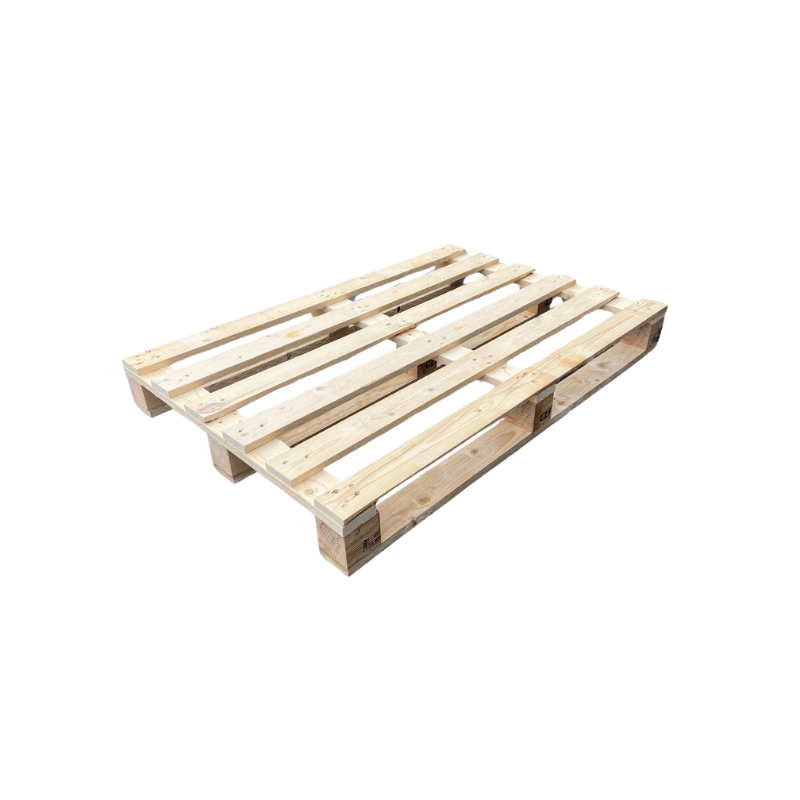

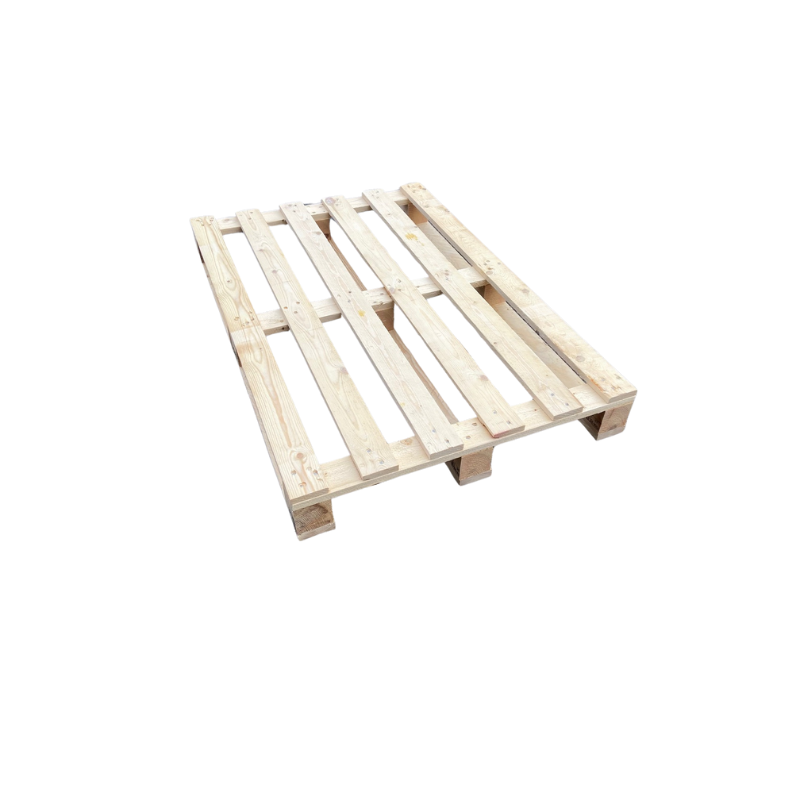

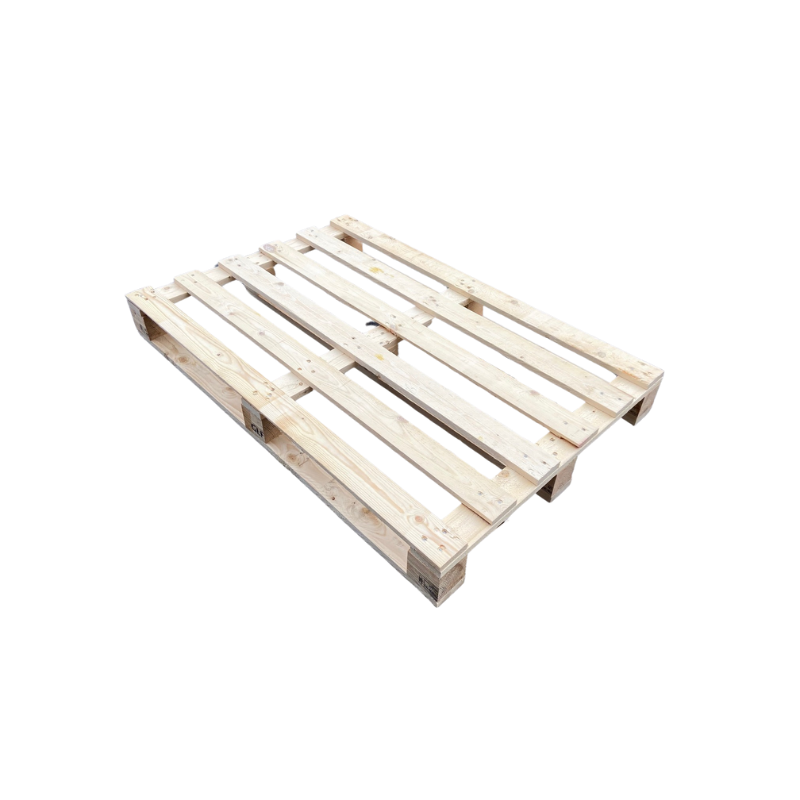

Full pallet 6D M22 in the 1 200 × 800 mm format

Full pallet 6D M22 combines six deck boards with three 22 mm runners for a defined transport flow. Article 1098 measures 1 200 × 800 mm and carries up to 500 kg with a uniformly distributed load. GLF plans quantity, treatment and delivery around the order.

Product specification

Dimensions and construction for article 1098
ProductFull pallet 1,200 × 800 mm – 6D M22
Article number1098
CategoryPallets / Standard pallets
Dimensions1 200 × 800 mm. Overall height is specified in the selected order drawing.
ConstructionSix deck boards and three 22 mm runners.
MarkingTreatment and ISPM 15 marking are confirmed for the order when required by the destination.
AvailabilityCurrent quantity, price and delivery arrangements are confirmed in the quote.
Price€ 10.37–13.53/unit excluding VAT and freight
Price conditionOrder quantity

Drawing and load conditions

Product specification

The table shows the pallet’s construction, dimensions and load capacity. Specify the required treatment, marking and delivery.

Construction and design

Construction and dimensions according to GLF’s drawing.

Pallet construction · view from the 800 mm sideSchematic exploded view from the 800 mm side: 6 deck boards, one of 3 cross boards, 3 of 9 blocks and 3 runners.

Schematic exploded view from the 800 mm side: 6 deck boards, one of 3 cross boards, 3 of 9 blocks and 3 runners.

Select a component in the diagram and dimension table.

Deck boards
The ends of all 6 deck boards are visible. The boards extend away from the view.
Cross boards
One of the 3 cross boards is visible along the full 800 mm side. The others are behind it in this view.
Blocks
3 of the 9 blocks are visible in this view.
Runners
The ends of all 3 runners are visible in this view.

Total construction height

According to the selected order drawing

Component dimensions · length × width × thickness or assembled height
Deck boardsSix deck boards; component dimensions follow the selected order drawing.
Cross boardsAccording to the selected order drawing.
BlocksAccording to the selected order drawing.
Runners / bottom boardsThree runners, 22 mm thick; other component dimensions follow the selected order drawing.

Load capacity and load conditions

Uniformly distributed load

Up to 500 kg

With a uniformly distributed load.

For concentrated loads or support in pallet racking, GLF selects the construction for that load case. The 500 kg value above applies to a uniformly distributed load.

Robot cell with a wooden pallet at GLF’s production facility in Genarp.

Manufacturing and customisation

Manufacturing at GLF

Robotic nailing on the production line in Genarp for newly manufactured versions.

Genarp has pallet drying facilities for newly manufactured wooden pallets. Moisture level and any heat treatment are selected according to the product and transport requirements.

Production in Genarp →

Choose according to the load case

Match the construction to supports and handling

The maximum load is 500 kg with a uniformly distributed load. Describe the goods’ support points, how the pallet is lifted and stored to select the construction.

Request a tailored quote

Include in the enquiry

  • The goods’ weight, dimensions and centre of gravity
  • Static, dynamic or rack-supported load case
  • Lifting, stacking, storage and load securing
  • Quantity and required delivery arrangements
  • Destination and treatment or marking requirements

Export and ISPM 15

Confirm treatment and marking for the order

GLF specifies the wood treatment and legible ISPM 15 marking for the supplied order and destination. The destination’s rules determine when this is required; the Swedish Board of Agriculture provides current guidance. Load capacity and handling remain governed by the pallet construction and load case.

  • DestinationThe importing market determines whether ISPM 15 is required.
  • SpecificationTreatment and legible marking are confirmed in the order specification.
  • LoadMarking does not replace verification of load capacity and handling.

Frequently asked questions

Frequently asked questions about Full pallet 6D M22

What are the dimensions of Full pallet 6D M22?

1 200 × 800 mm. Overall height is specified in the selected order drawing.

How is the pallet’s maximum load determined?

Article 1098 has a maximum load of 500 kg with a uniformly distributed load.

Can the model be used for export?

Yes, if the specification has the correct treatment and legible marking for the destination’s rules. Treatment and ISPM 15 marking are confirmed in the quote.

What information is needed for a quote?

Send the dimensions and weight of the goods, load distribution, handling, quantity, destination and any treatment, marking or documentation requirements.

From load requirements to quotation

Does Full pallet 6D M22 suit your flow?

Send the dimensions and weight of the goods, quantity and destination for a quote covering the right specification, marking and delivery arrangements.

Request a quote

Full pallet 1,200 × 800 mm – 6D M22Art. 1098
Request a quote →
